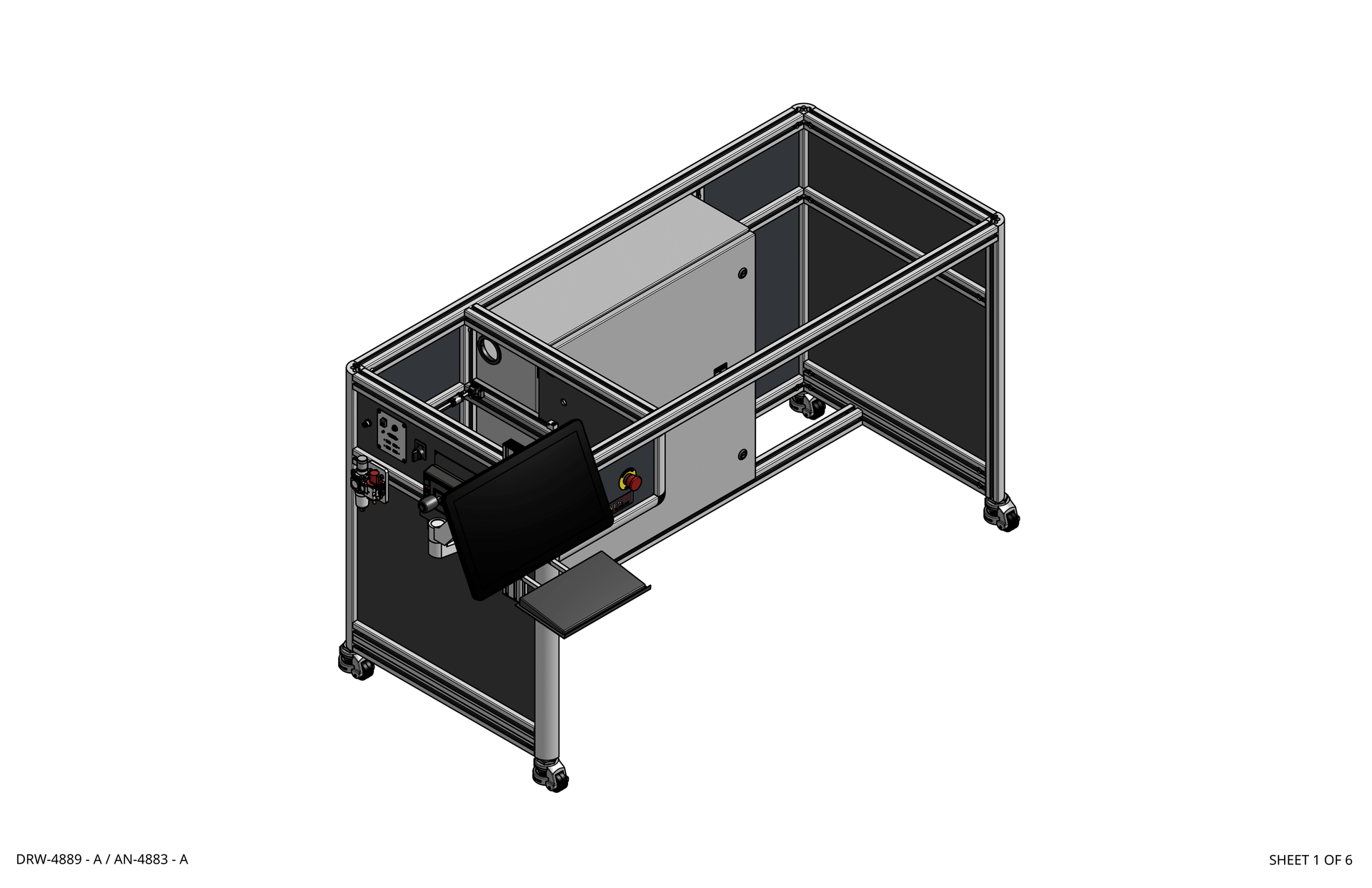

4500 Populated Frame
Please select the part you need from the drawing and drop down list:
- AN-013: Monitor Arm and Keyboard
- AN-2442: Comp Interface Panel & Connectors
- AN-2625: AW20 Regulator Assembly
- AN-2627: Joystick Assembly
- AN-4872: 65"x29" Frame - Base Assy
- HDW-90049: Socket button head cap screw #10-32 x 0.5
- HDW-90065: Type B wide flat washer 5/16
- HDW-90066: Socket button head cap screw #6-32 x 0.5
- HDW-90070: Socket head cap screw #10-32 x 1.75
- HDW-90071: Socket head cap screw 1/4-20 x 0.75
- PN-140: Hand Control Holster
- PN-238: Panel Mount - 45mm T-Slot
- PN-864: 30x30x10 NEMA Box - Primary
- PN-2096: 10-32 T Nut (10mm)
- PN-2097: 1/4-20 T-Nut (10mm)
- PN-2343: Panel - Frame - 29" Deep Unit - Inner Machined
- PN-2351: Panel for 30x30 Box
- PN-2400: 1/4" Bulkhead Fitting
- PN-2411: 22mm Red Mushroom PB, Twist Release
- PN-2412: Emergency Stop Legend Plate
- PN-2413: Blue LED 22mm PB
- PN-2414: 22mm 2-Pos Selector Switch
- PN-2418: 22mm Legend Plate - Black Work Light
- PN-2419: 22mm Legend Plate - Blue RESET
- PN-2447: 3in Snap-In Bushing
- PN-2451: Cable Grip 5.5-12mm, Black
- PN-2454: Name Plate Blank
- PN-2455: Danger - High Voltage Sticker
- PN-2457: 6-32 KL Nut
- PN-2467: M8 Serrated Flange Nut
- PN-2468: 8x25mm Slot 10 T-Bolt
- PN-2513: 4500 Series Sticker
