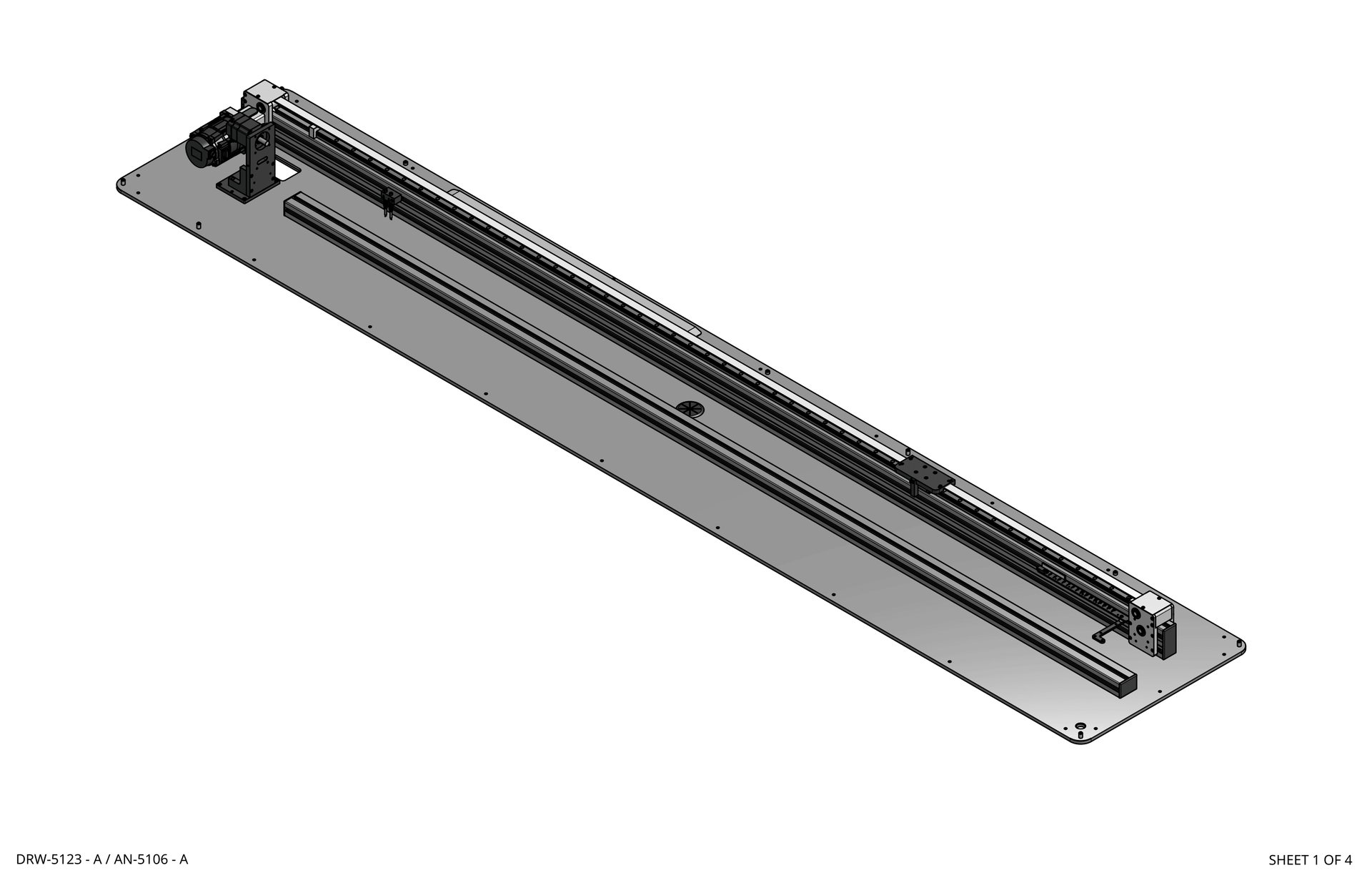

4800 Deck Plate
Please select the part you need from the drawing and drop down list:
- AN-009: Actuator Pulley - Driven
- AN-010: Actuator Pulley - Motor
- AN-5104: Carriage Sub-Plate - Single Truck
- ASSY-008: Tailstock Sensor
- HDW-90008: Socket head cap screw #10-32 x 0.625 Stainless Steel
- HDW-90025: Socket head cap screw 1/4-20 x 0.88
- HDW-90029: Socket countersunk head cap screw #4-40 x 0.25
- HDW-90037: Socket head cap screw #10-32 x 0.75
- HDW-90047: Socket button head cap screw 1/4-20 x 0.625
- HDW-90048: Socket button head cap screw #10-32 x 0.75 Stainless Steel
- HDW-90054: Socket button head cap screw #10-32 x 0.625
- HDW-90055: Straight pin 1/8 x 0.5
- HDW-90092: Socket head cap screw 1/4-20 x 0.375 Stainless Steel
- HDW-90093: Ground dowel pin 1/4 x 0.5625
- HDW-90094: Hex socket head cap screw M5x0.80 x 12
- HDW-90095: Hex flange nut M8x1.25
- HDW-90096: Socket head cap screw #10-32 x 1.25
- HDW-90097: Hex socket head cap screw M5x0.80 x 20
- PN-042: Rail Stop - Actuator
- PN-044: End of Travel Sensor Mount
- PN-061: Sliding Sensor Arm
- PN-227: Locating Slug
- PN-233: Motor Mount - Gusset - Headstock - Manual
- PN-308: Surround Mounting Pin
- PN-341: Headstock - Motor Mount - Manual - 6k RPM
- PN-453: Headstock Mfg Plate - Bunk Bed
- PN-622: Deck Plate - Bunk Bed - 136IN x 24IN
- PN-942: BRKT - Shipping Carriage
- PN-991: Cable Carrier Support - Frame
- PN-2096: 10-32 T Nut (10mm)
- PN-2097: 1/4-20 T-Nut (10mm)
- PN-2100: M5 T-Nut (10mm)
- PN-2267: 45x90 End Cap
- PN-2268: 45x60 End Cap
- PN-2278: 2.375" Grommet
- PN-2468: 8x25mm Slot 10 T-Bolt
- PN-2773: Motor - Servo - 400W
- PN-3014: Sensor - Induct Prox - Home
- PN-3015: Sensor - Induct Prox - EOT
- PN-3016: M8 Sensor Cable
- PN-3069: Cable Carrier Brkt - Male
- PN-3073: Cable Carrier - Link
- PN-3565: Nylon Tip Hex Socket Set Screw #6-32 x 0.125
- PN-3684: Motor - Servo - 450W
- PN-3968: Rail 20mmx18mm - 129" Unit
- PN-4264: Coupler - Servo - .500" x 16mm
- PN-5078: Actuator Extrusion - Bunk Bed
- PN-5080: Tailstock Extrusion - Bunk Bed
- PN-5086: Actuator Belt - Bunk Bed Unit
