Carriage Sub-Plate - Tag
5000 Carriage Sub-Plate - Tag

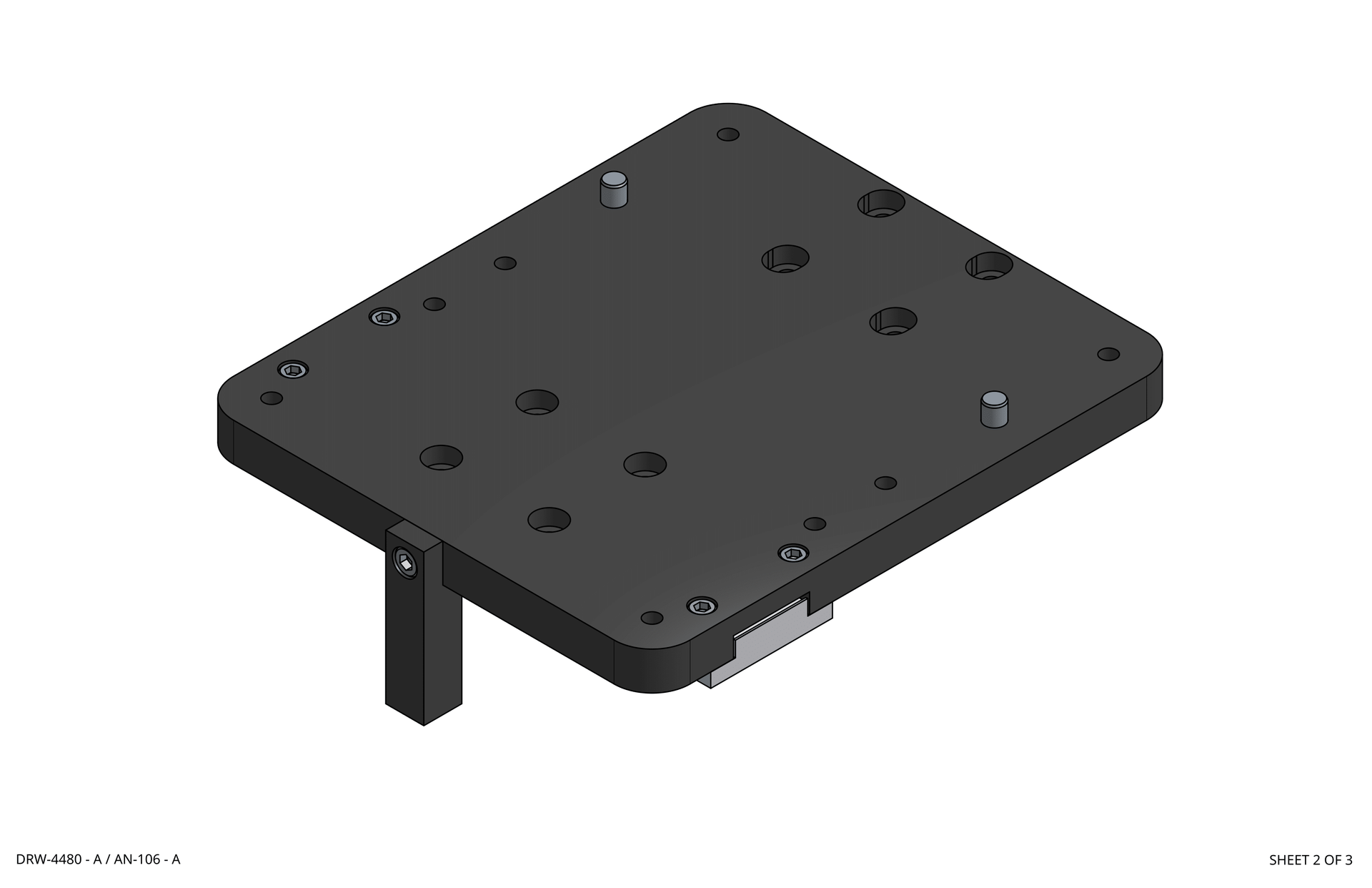

Carriage Sub-Plate - Tag 4000/5000 Series

Please select the part you need from the drawing and drop down list:


  • HDW-90005: Socket head cap screw #10-32 x 0.375
  • HDW-90034: Straight pin 1/4 x 0.75
  • HDW-90169: Socket head cap screw #8-32 x 0.5625
  • HDW-90170: Hardened ground machine dowel pin 3/8 x 0.5
  • PN-041: Rack Sub Plate
  • PN-043: Modified Belt Clamp
  • PN-2279: Sensor Flag - Actuator EOT

Once you find the part(s) you need, please submit via our request@rothgreaves.com email or give us a call (1-952-404-2604). Please include your Machines' serial number.
