5000 Dampener – V Tray

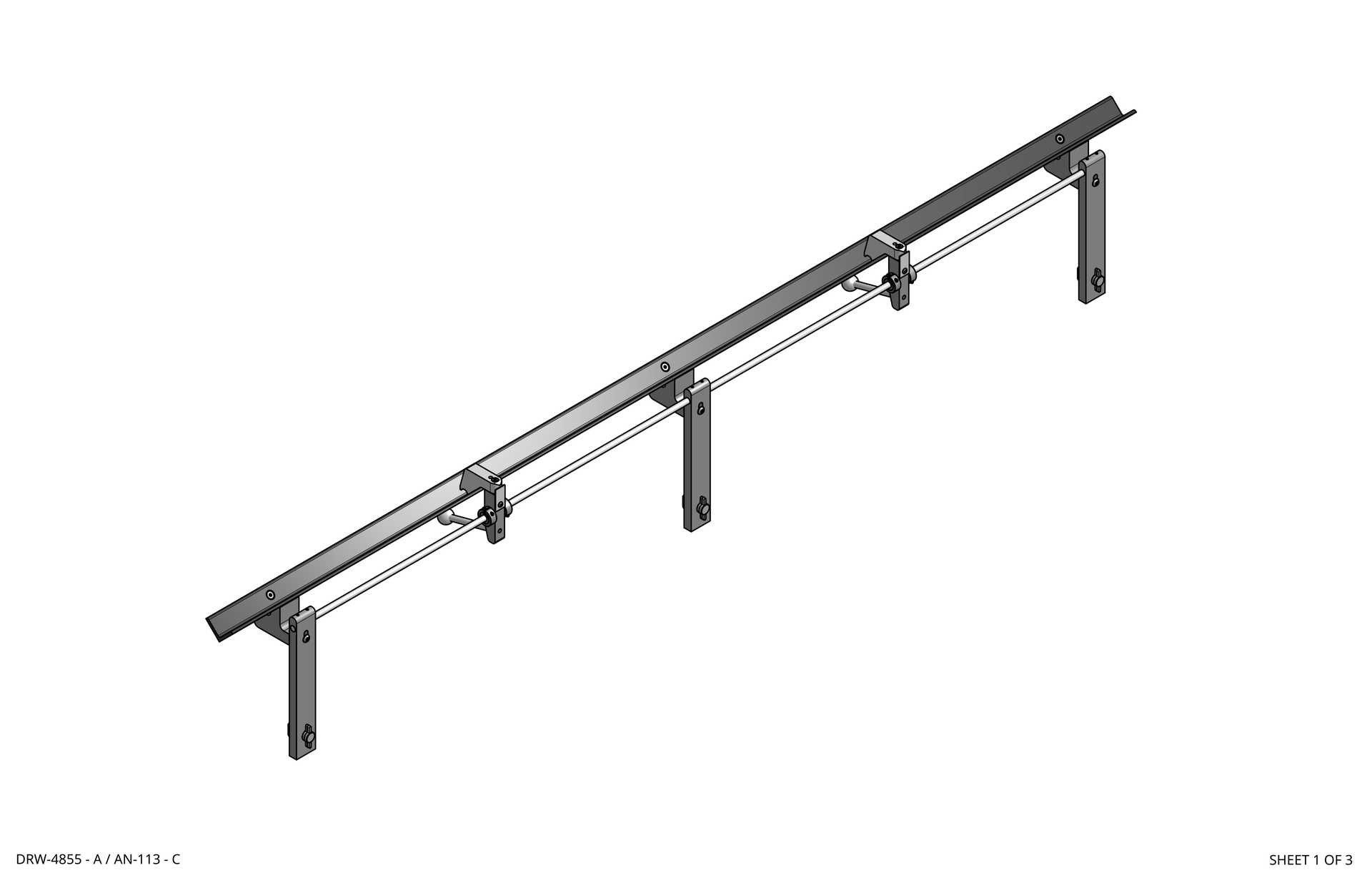

Please select the part you need from the drawing and drop down list:

• AN-007: Dampener Arm - V Tray
• HDW-90037: Socket head cap screw #10-32 x 0.75
• HDW-90079: Socket button head cap screw #8-32 x 0.75
• HDW-90148: Flat point hex socket set screw #4-40 x 0.1875
• HDW-90149: Socket countersunk head cap screw #8-32 x 0.3125
• PN-023: Dampener - V Tray Brkt
• PN-027: Dampener - Upright - V Tray
• PN-2096: 10-32 T Nut (10mm)
• PN-365: Dampener - V Tray 47.5"
• PN-366: Dampener - Pivot Rod - V Tray 47.5" Lng
• PN-4368: Clamp Collar - 1/4" Shaft
• PN-4369: Knob - SHCS - Two Arm - No. 10
