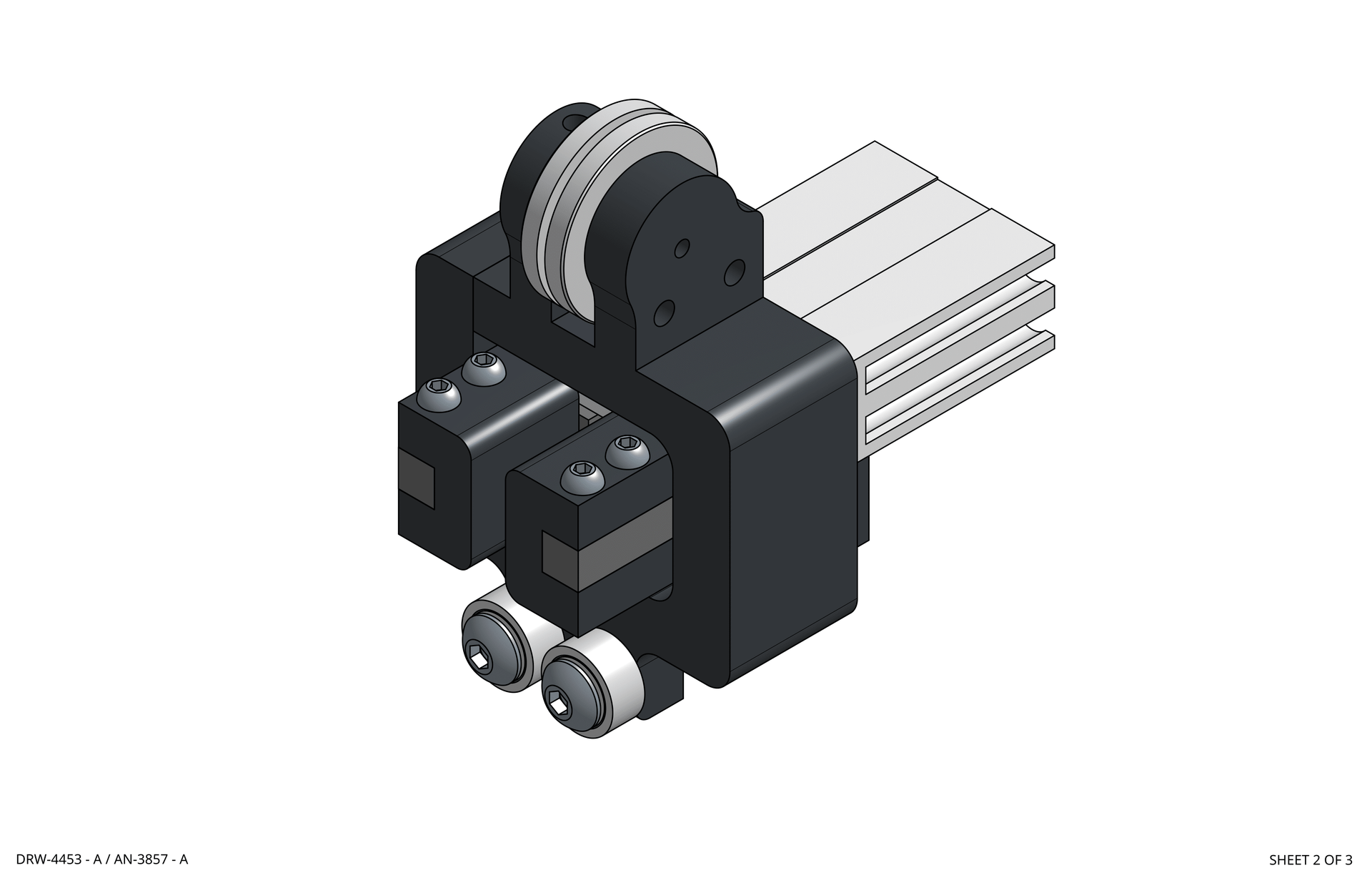

5000 Guide Wheel and Filament Gripper

Please select the part you need from the drawing and drop down list:

• HDW-90074: Socket button head screw M2x0.4 x 8
• HDW-90075: Hex socket head cap screw M3x0.50 x 14
• HDW-90076: Straight pin 1/16 x 0.5
• HDW-90077: Cup point hex socket set screw #4-40 x 0.125
• HDW-90082: Socket button head cap screw #5-40 x 0.5
• HDW-90083: Socket head cap screw #4-40 x 0.5
• PN-150: Payout Guide Wheel
• PN-2060: Shielded EBI Bearing OD 0.3125"
• PN-3852: Guide Wheel and Gripper Housing
• PN-3853: Gripper Mtg Block
• PN-3854: Air Gripper - Parallel
• PN-3855: Gripper Jaw - Filament
• PN-3881: Thumb Screw Knob - No. 4
