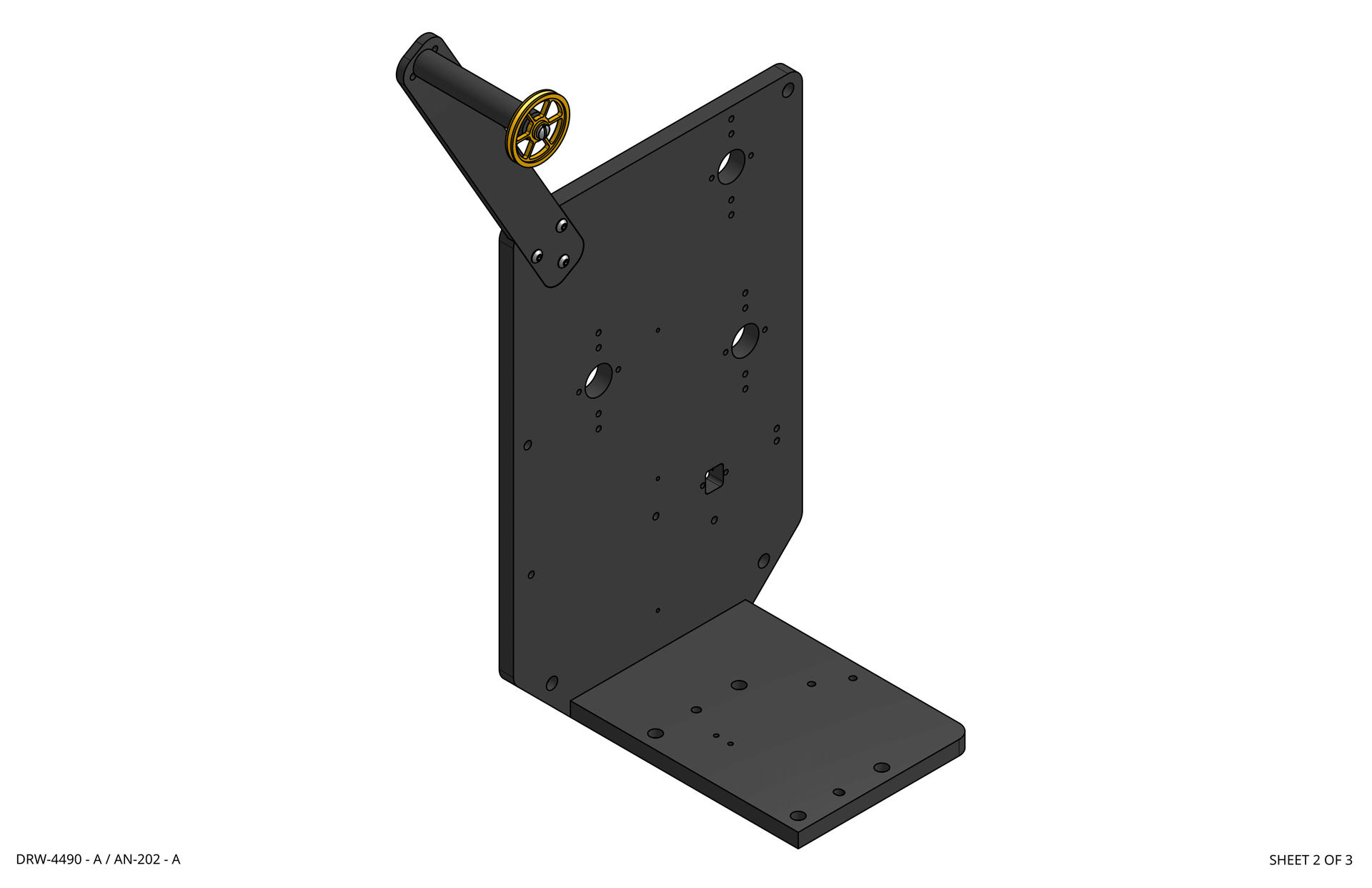

rothgreaves, 4000 series coil winder, rack, cad drawing base
5000 Rack – 90 Deg 3 Place – Base
Rack 3 Place Base 4000/5000 Series

Please select the part you need from the drawing and drop down list:


  • AN-3913: Wheel - Guide - 2"
  • HDW-90034: Straight pin 1/4 x 0.75
  • HDW-90049: Socket button head cap screw #10-32 x 0.5
  • HDW-90054: Socket button head cap screw #10-32 x 0.625
  • HDW-90081: Socket head cap screw 1/4-20 x 0.5
  • HDW-90089: Binding head machine screw #10-32 x 0.5
  • PN-635: RACK PLATE - 3 PLACE 90 DEGREE
  • PN-636: Rack - Guide Wheel Arm
  • PN-637: Rack - Guide Wheel Post
  • PN-645: Rack - Base Plate - 90 Deg

Once you find the part(s) you need, please submit via our request@rothgreaves.com email or give us a call (1-952-404-2604). Please include your Machines' serial number.
