Actuator Pulley – Motor
Actuator Pulley Part Numbers

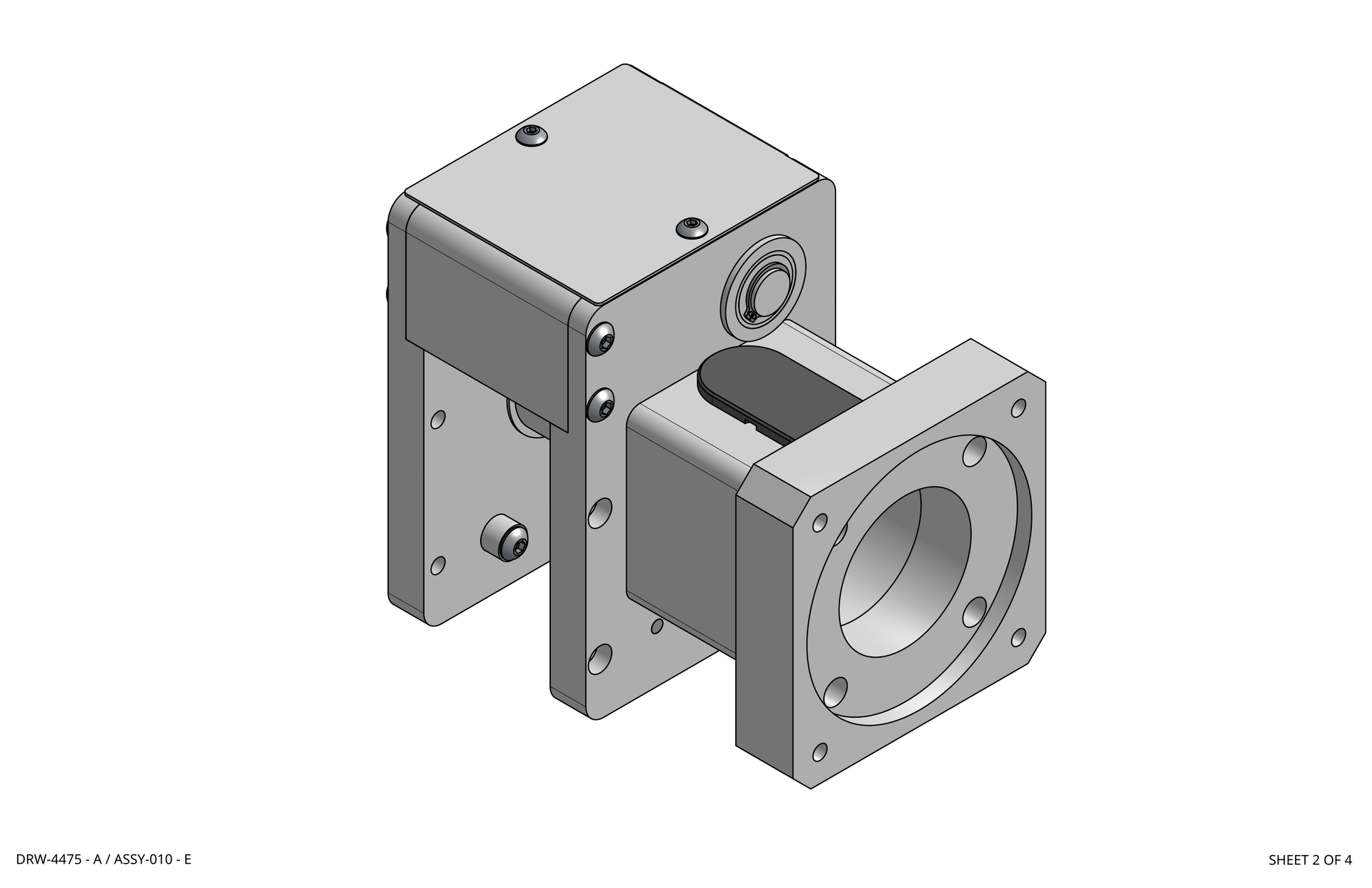

Please select the part you need from the drawing and drop down list:


  • HDW-90008: Socket head cap screw #10-32 x 0.625
  • HDW-90045: Socket button head cap screw #8-32 x 0.5
  • HDW-90048: Socket button head cap screw #10-32 x 0.75
  • HDW-90049: Socket button head cap screw #10-32 x 0.5
  • HDW-90119: External retaining ring NA1-50
  • HDW-90120: Cup point hex socket set screw #10-32 x 0.25
  • PN-030: Left Drive Bearing Mount
  • PN-031: Right Drive Bearing Mount
  • PN-032: Pulley Support Plate
  • PN-034: Driven Shaft
  • PN-035: Actuator Modified Pulley
  • PN-036: Actuator Belt Cover
  • PN-037: Traverse Motor Mount (Yaskawa)
  • PN-038: Yaskawa Actuator Adapter Plate
  • PN-039: Drive Shaft
  • PN-040: Coupler Cover
  • PN-227: Locating Slug
  • PN-2033: Wave Spring OD 1.102"
  • PN-2054: Shielded Bearing 1.125" OD
Add to Quote
