Angle Compensator
Payout Tooling Part Numbers

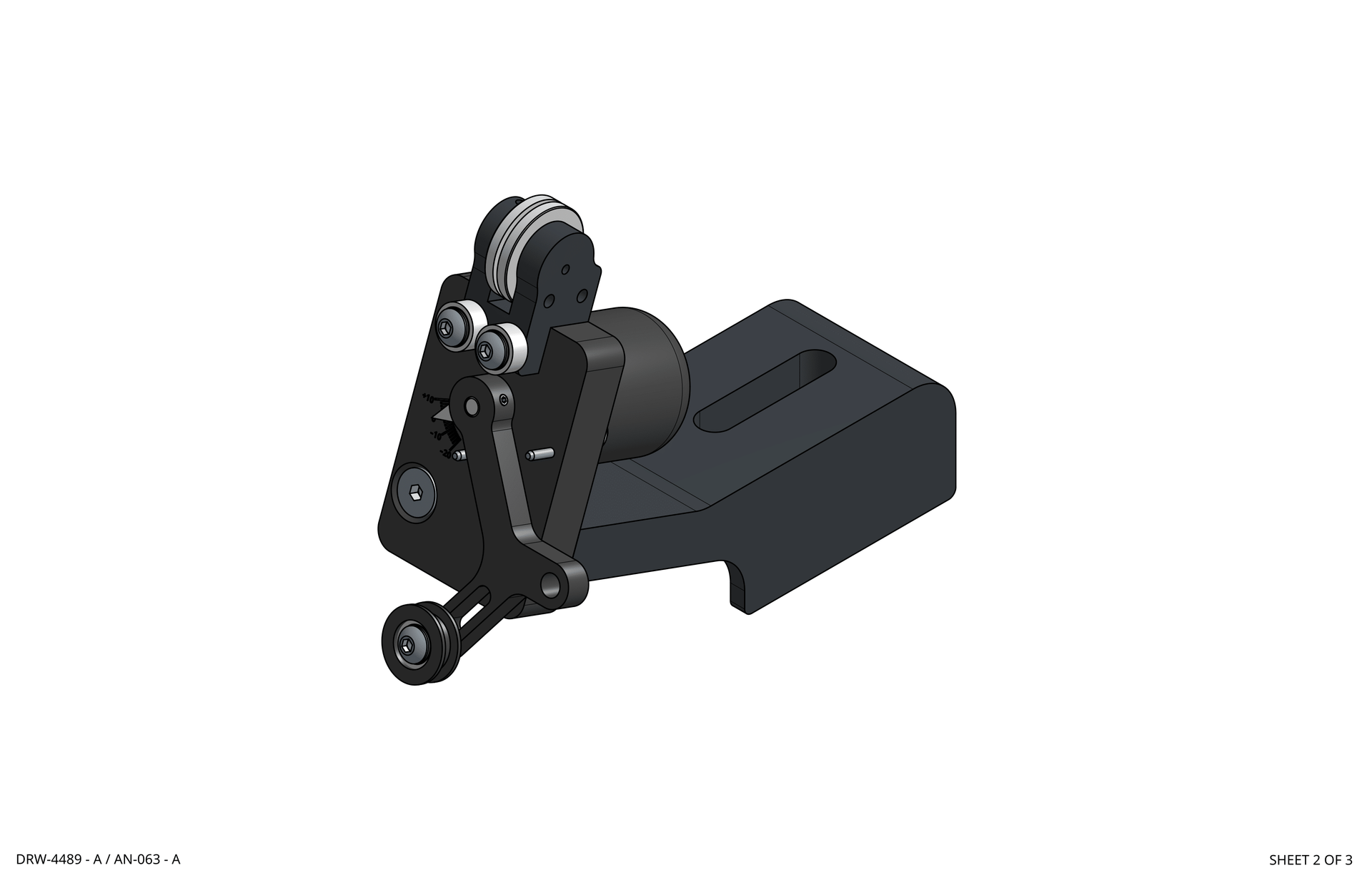

Please select the part you need from the drawing and drop down list:


  • PN-259: Payout Tooling - QC Slide
  • PN-217: Angle Comp - Sensor Mtg Plate
  • PN-220: Angle Comp Encoder Arm
  • PN-191-TAB-01: Compensator Guide Wheel - TAB-01
  • AN-4029: Payout Tooling - Guide Wheel
  • PN-2397: Rotary Sensor - Cover
  • PN-4374: Rotary Sensor - 60 Deg Range
  • PN-2060: Shielded EBI Bearing OD 0.3125"
  • HDW-90122: Straight pin 1/16 x 0.375
  • HDW-90143: Socket countersunk head cap screw #8-32 x 0.75
  • PN-90406: Screw - 4-40 - Flanged Button Head
  • HDW-90167: Flat point hex socket set screw #2-56 x 0.125
  • HDW-90123: Socket button head cap screw #5-40 x 0.375




Add to Quote
