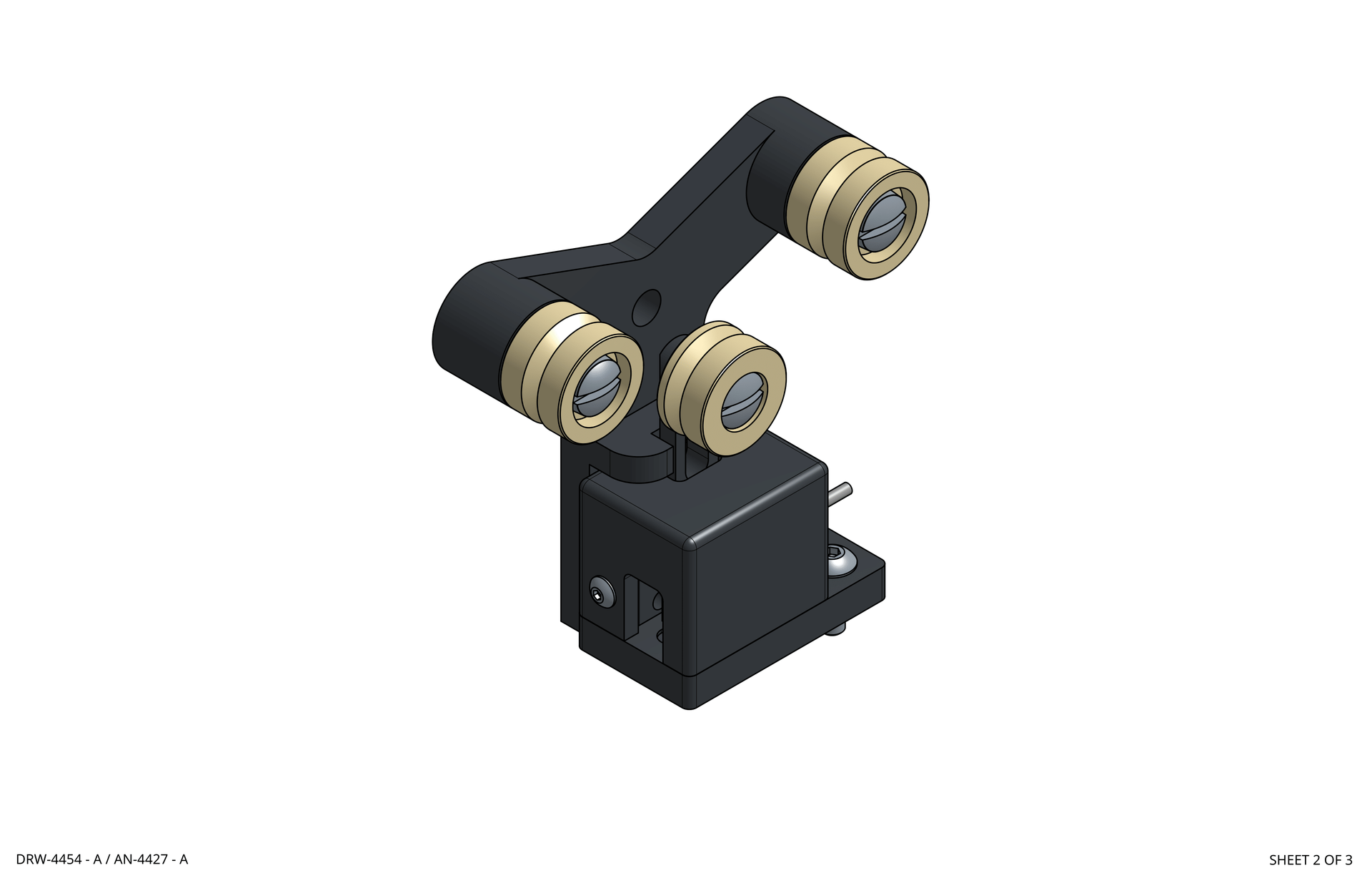

Filament Tension Load Cell Feed Back Module (Yoke)

Please select the part you need from the drawing and drop down list:

• PN-209: Load Cell Base
• PN-631: Yoke LC Wheel Arm Guide
• PN-634: LC Wheel Mtg Arm
• PN-210: Load Cell Cover
• AN-4013: Wheel - Vee - Flush Mount - PEEK - Assembly
• AN-4137: Wheel - Vee - Wide - PEEK - Assembly
• PN-2416: Load Cell
• HDW-90089: Binding head machine screw #10-32 x 0.5
• HDW-90045: Socket button head cap screw #8-32 x 0.5
• HDW-90164: Socket button head cap screw #4-40 x 0.375
• HDW-90115: Hex socket head cap screw M3x0.50 x 6
