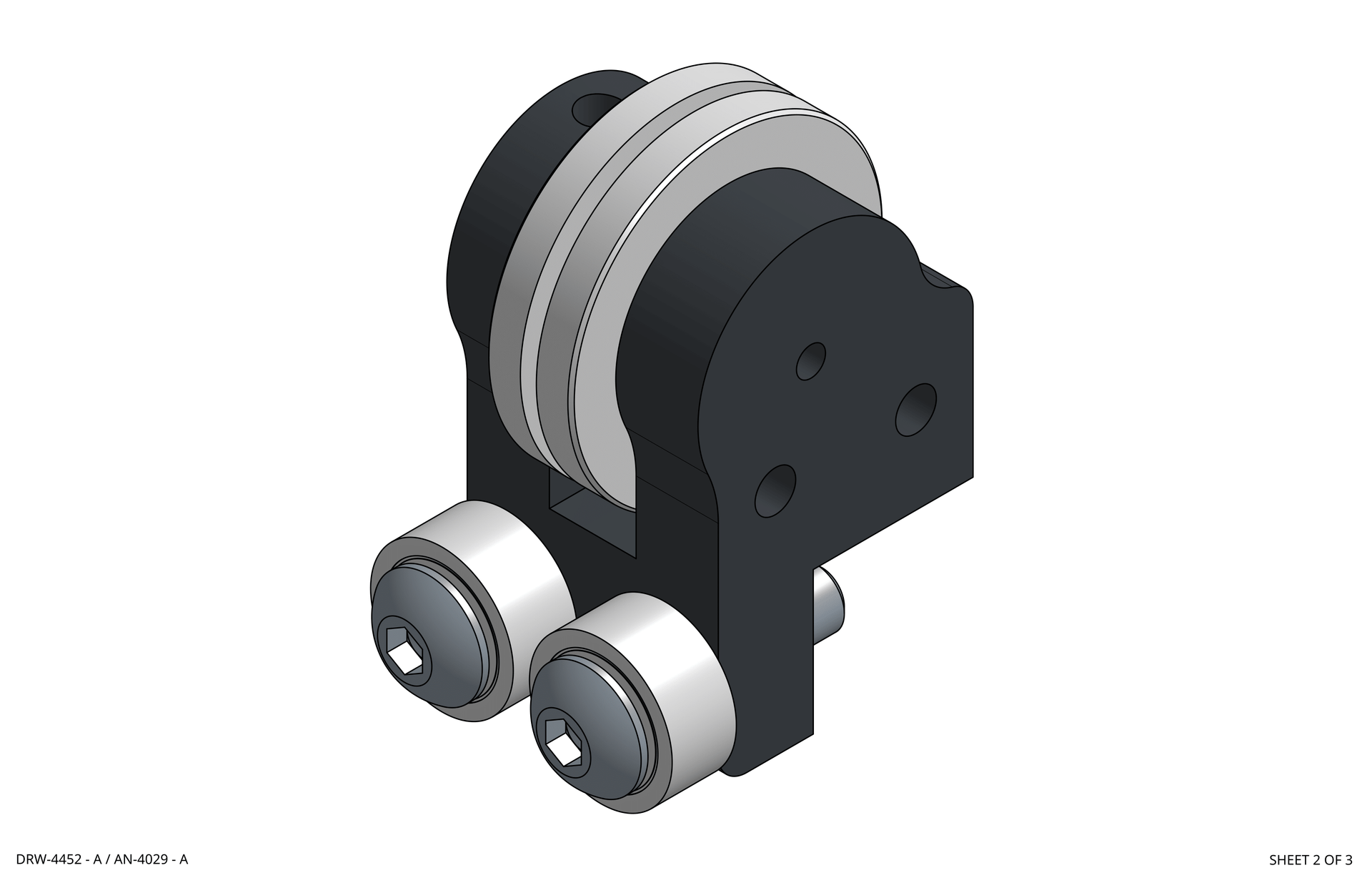

Payout Tooling Guide Wheel
Payout Tooling Guide Wheel
Payout Tooling Guide & Gripper

Please select the part you need from the drawing and drop down list:


  • HDW-90076: Straight pin 1/16 x 0.5
  • HDW-90077: Cup point hex socket set screw #4-40 x 0.125
  • HDW-90082: Socket button head cap screw #5-40 x 0.5
  • PN-150: Payout Guide Wheel
  • PN-2060: Shielded EBI Bearing OD 0.3125"
  • PN-218: Guide Wheel Housing
Machine Serial Number:*0/320

If unknown, enter serial as N/A

* Pricing is listed as $0 due to model-specific variations. We’ll review your serial number, follow up if needed, and email a precise quote

Add to Quote
