Pneumatic Low Tailstock

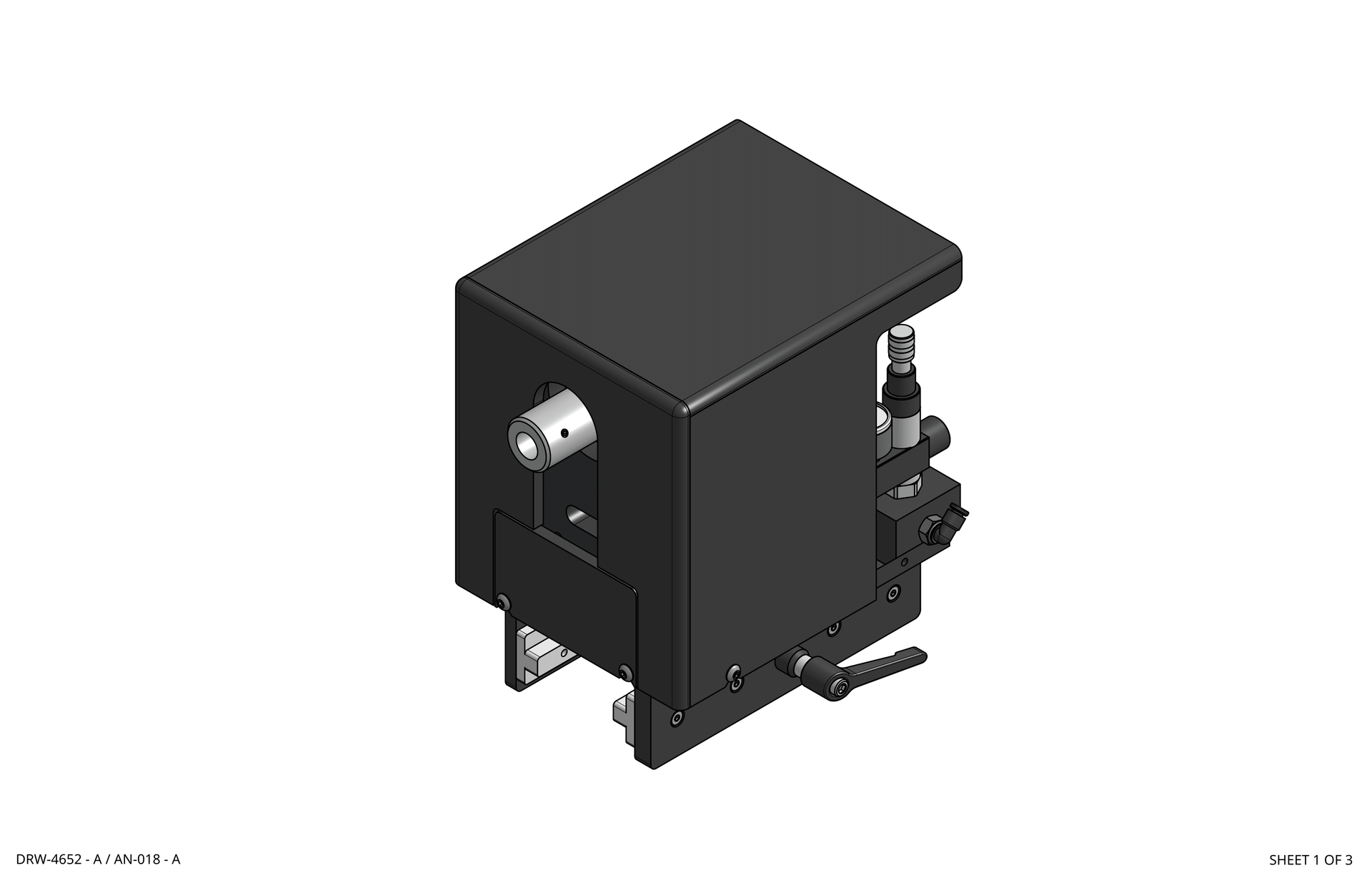

Please select the part you need from the drawing and drop down list:
- AN-4477: Motor Chuck Coupler - 500" x 14mm
- ASSY-259: Tailstock Slide - 45x60
- HDW-90008: Socket head cap screw #10-32 x 0.625
- HDW-90031: Socket button head cap screw #8-32 x 0.375
- HDW-90036: Socket head cap screw #10-32 x 1
- HDW-90075: Hex socket head cap screw M5x0.80 x 30
- HDW-90076: Hex socket head cap screw M6x1.00 x 16
- HDW-90078: Socket countersunk head cap screw #4-40 x 0.1875
- HDW-90081: Socket button head cap screw #8-32 x 0.5
- PN-055: Motor Mtg Plate - MXS16-20 - Low
- PN-063: Manifold Block
- PN-2773: Motor - Servo - Yaskawa - 400W
- PN-350: Cover - Tailstock - MXS16-20 Low
- PN-3539: 45X60 MOD Cable Carrier BRKT - Tailstock
- PN-438: Pneumatic Slide
- PN-4553: Pneumatic Regulator - Low Flow
- PN-4554: Pressure Gauge - 0-100 PSI
- PN-4567: Pneu Fitting - Flow Control - Male Stud Elbow - 10-32x5/32" OD
- PN-4575: Pneu Fitting - Male Stud Elbow - 1/8" NPTx5-32IN OD
- PN-941: Cover - Tailstock - MXS16-20 Low - No Grip Panel
Machine Serial Number:*0/320
If unknown, enter serial as N/A
* Pricing is listed as $0 due to model-specific variations. We’ll review your serial number, follow up if needed, and email a precise quote
