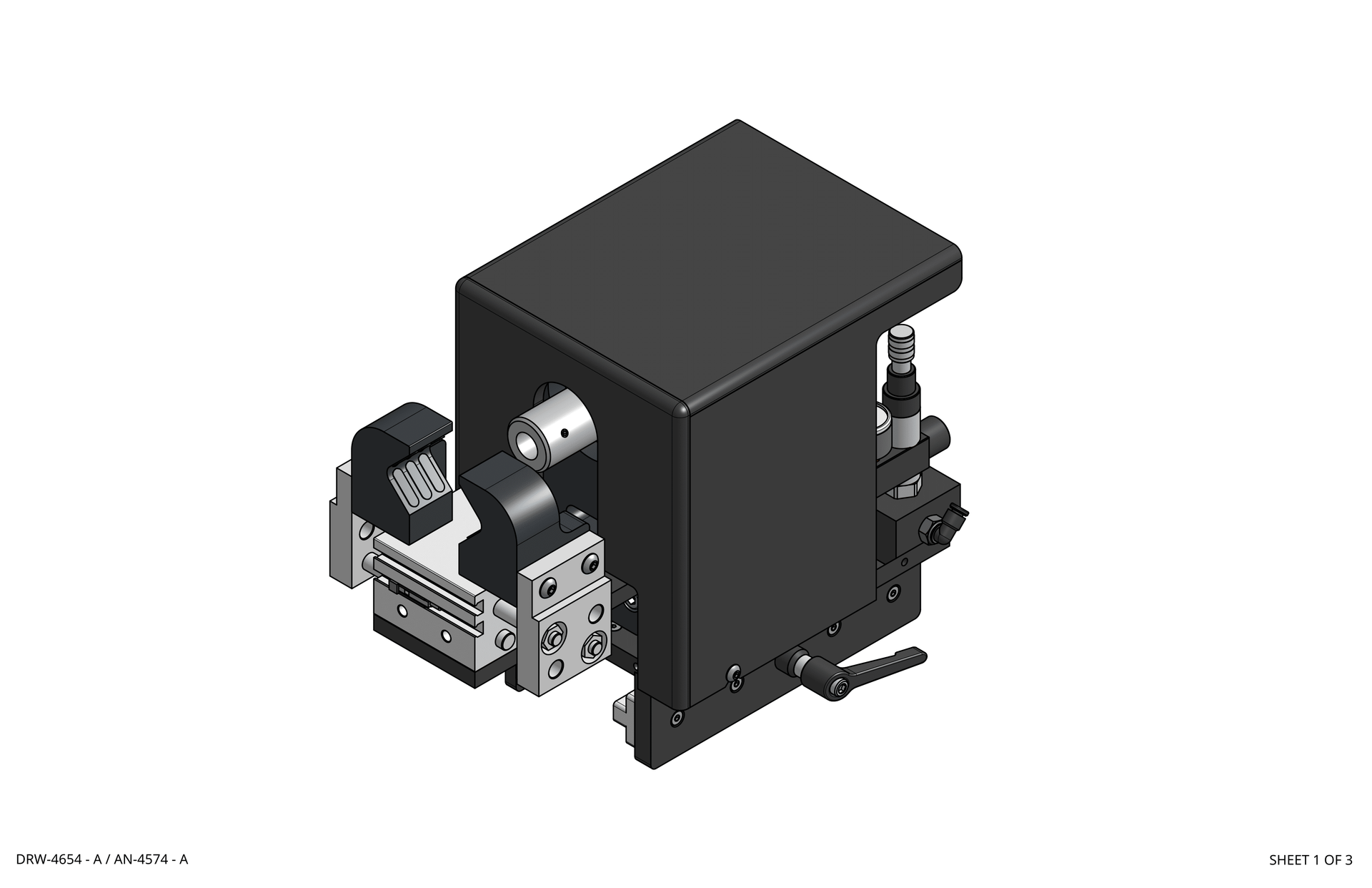

Pneumatic Low Tailstock w/Gripper

Please select the part you need from the drawing and drop down list:

• AN-4477: Motor Chuck Coupler - 500" x 14mm
• ASSY-259: Tailstock Slide - 45x60
• HDW-90008: Socket head cap screw #10-32 x 0.625
• HDW-90031: Socket button head cap screw #8-32 x 0.375
• HDW-90036: Socket head cap screw #10-32 x 1
• HDW-90037: Socket head cap screw #10-32 x 0.75
• HDW-90054: Socket button head cap screw #10-32 x 0.625
• HDW-90128: Hex socket head cap screw M5x0.80 x 10
• HDW-90175: Hex socket head cap screw M5x0.80 x 30
• HDW-90176: Hex socket head cap screw M6x1.00 x 16
• HDW-90178: Socket countersunk head cap screw #4-40 x 0.1875
• PN-055: Motor Mtg Plate - MXS16-20 - Low
• PN-063: Manifold Block
• PN-160: Gripper Pad
• PN-2773: Motor - Servo - Yaskawa - 400W
• PN-350: Cover - Tailstock - MXS16-20 Low
• PN-3639: 45X60 MOD Cable Carrier BRKT - Tailstock
• PN-3827: SMC Air Gripper - Parallel - 16mm Bore x Wide Opening
• PN-438: Pneumatic Slide
• PN-449: Chuck Gripper - MHL2-16D - Right
• PN-450: Chuck Gripper - MHL2-16D - Left
• PN-4553: Pneumatic Regulator - Low Flow
• PN-4554: Pressure Gauge - 0-100 PSI
• PN-4567: Pneu Fitting - Flow Control - Male Stud Elbow - 10-32x5/32" OD
• PN-4575: Pneu Fitting - Male Stud Elbow - 1/8" NPTx5-32IN OD
• PN-4627: Pneu Fitting - Male Stud - 10-32x4mm OD
• PN-911: Gripper Mtg Plate - Man Head and Tailstock
