Two Pin Pitch Guide
Payout Tooling Part Numbers

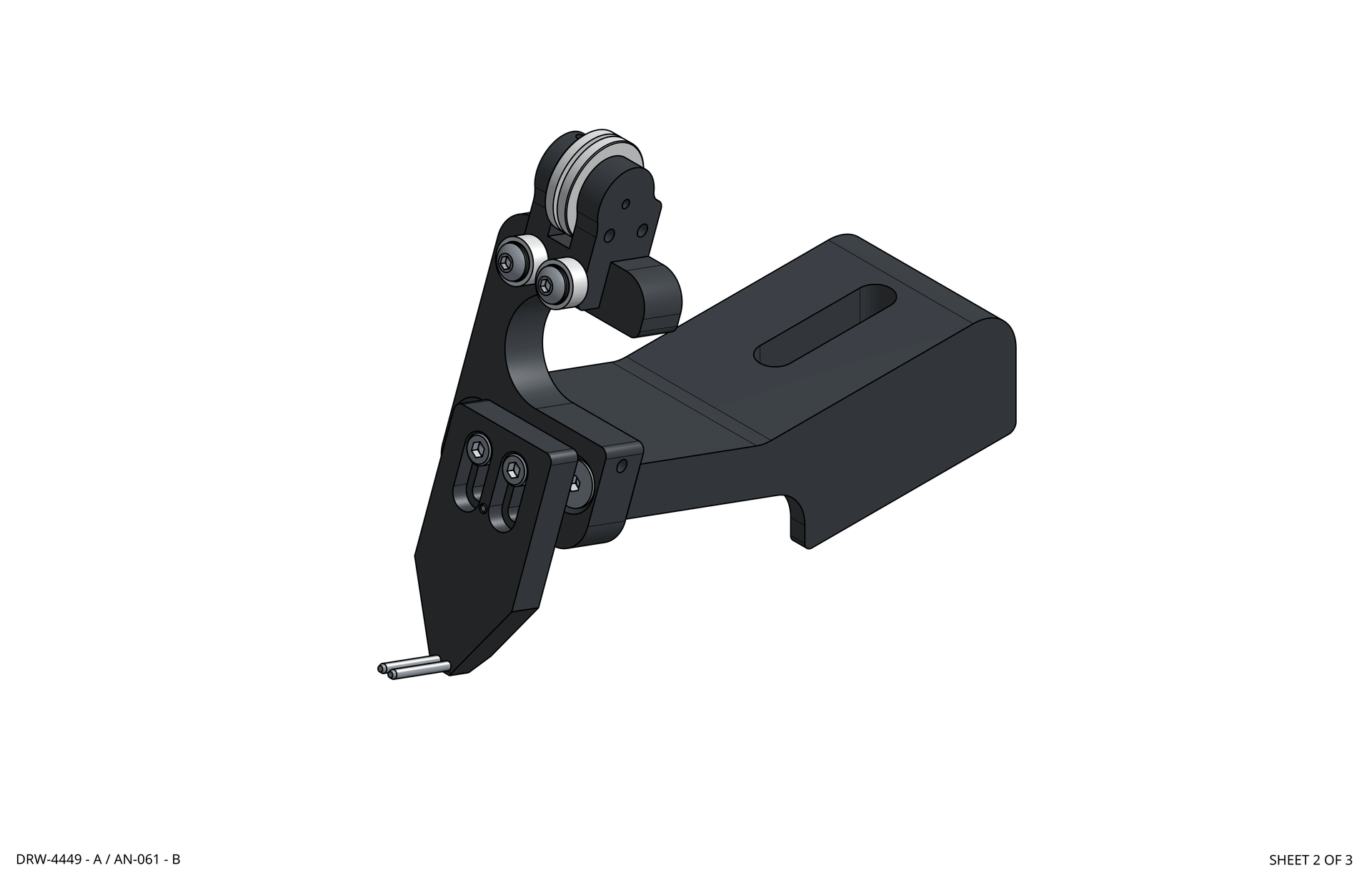

Please select the part you need from the drawing and drop down list:


  • PN-224: Mounting Plate - Pitch Clip
  • PN-225: Pitch Guide - Standard
  • PN-259: Payout Tooling - QC Slide
  • AN-4029: Payout Tooling - Guide Wheel
  • PN-4301: Shim
  • HDW-90122: Straight pin 1/16 x 0.375
  • HDW-90121: Straight pin 1/16 x 0.75
  • HDW-90013: Socket head cap screw #5-40 x 0.375
  • HDW-90143: Socket countersunk head cap screw #8-32 x 0.75
