5000 Auto Head – Cutter Module
Auto Headstock, Spindle & Cutter 5000 Series

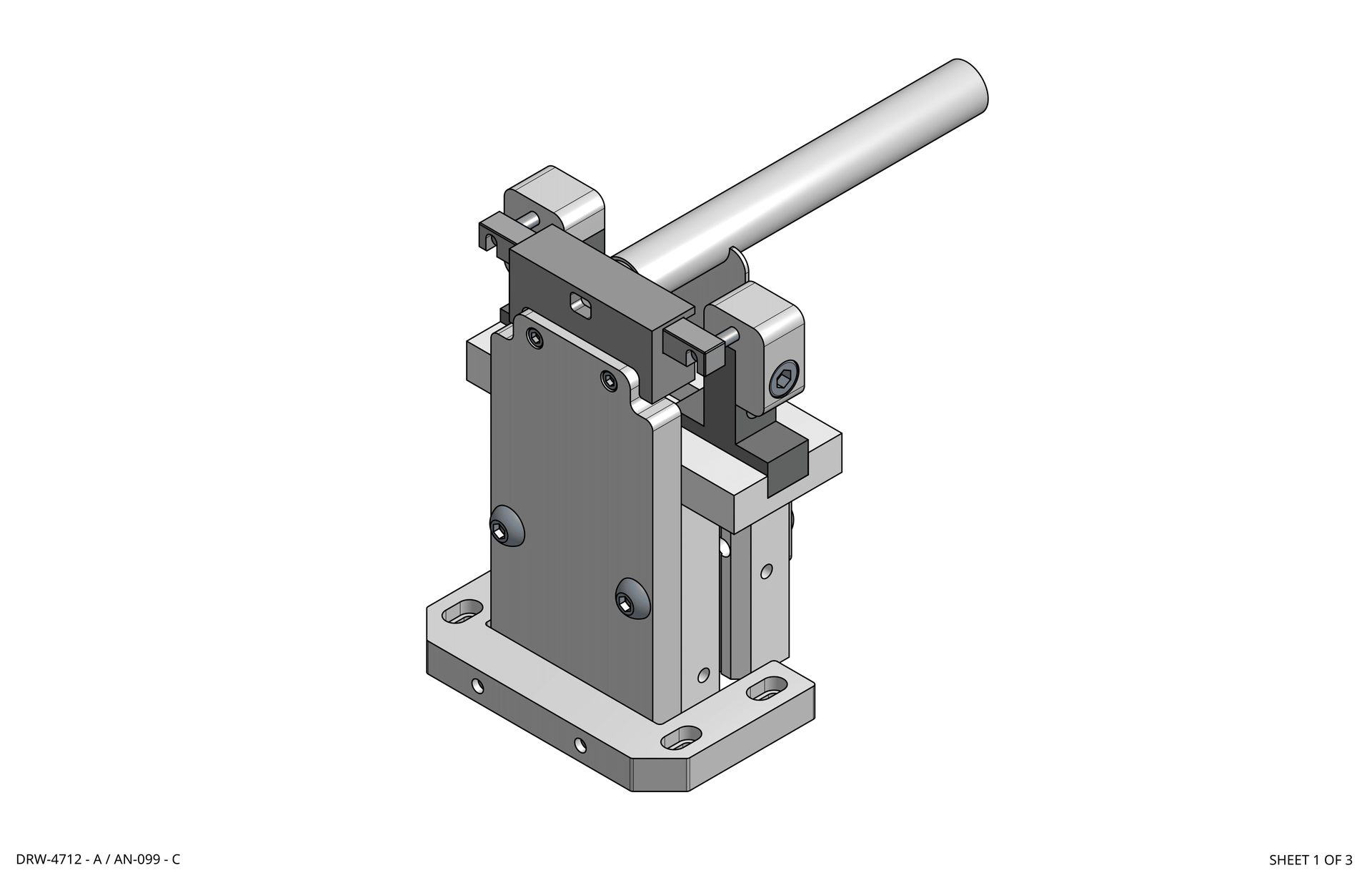

Please select the part you need from the drawing and drop down list:


  • AN-3670: Ejection Tube Weldment
  • HDW-90019: Ground dowel pin 3/16 x 1.375
  • HDW-90020: Hex socket head cap screw M8x1.25 x 18
  • HDW-90023: Socket button head screw M8x1.25 x 25
  • HDW-90024: Socket head cap screw #8-32 x 0.625
  • HDW-90025: Socket head cap screw 1/4-20 x 0.88
  • HDW-90130: Socket button head screw M8x1.25 x 12
  • PN-016: Cutter Guide Block
  • PN-017: Left Coil Cutter
  • PN-018: Right Coil Cutter
  • PN-019: Cutter Pin Holder
  • PN-347: Lower Gripper Mount - Mod Mtg
  • PN-348: Cutter Gripper Base Plate - Mod Mtg
  • PN-3603: SMC Air Gripper - Parallel - 40mm Bore X 30mm Stroke
  • PN-3612: Switch - Solid State NPN

Once you find the part(s) you need, please submit via our request@rothgreaves.com email or give us a call (1-952-404-2604). Please include your Machines' serial number.
