5000 Thru-Feed Spindle Head
Auto Headstock, Spindle & Cutter 5000 Series

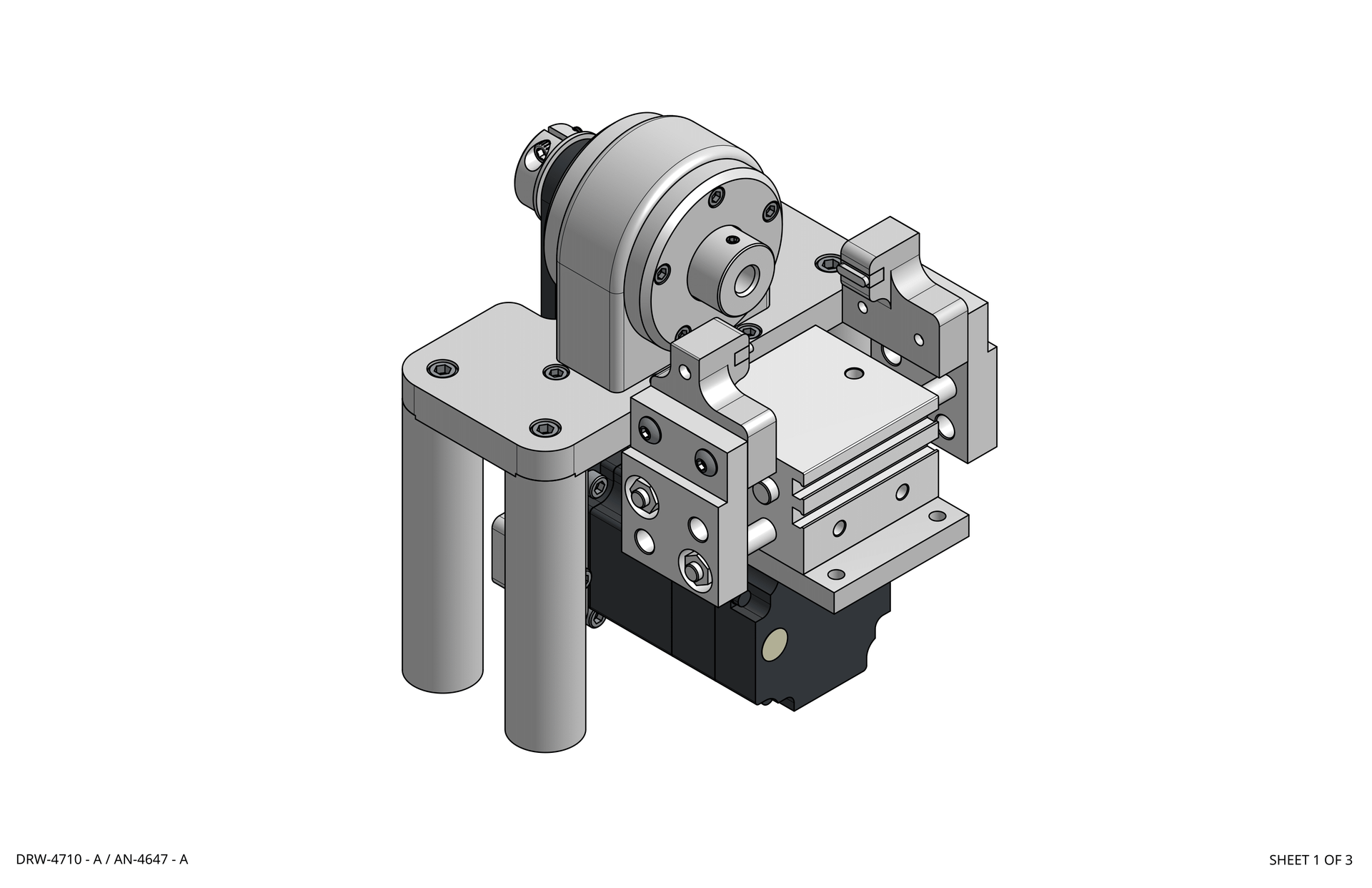

Please select the part you need from the drawing and drop down list:


  • AN-002: Auto Spindle Head
  • HDW-90007: Socket head cap screw 1/4-20 x 0.625
  • HDW-90008: Socket head cap screw #10-32 x 0.625
  • HDW-90018: Straight pin 3/16 x 0.75
  • HDW-90026: Socket head cap screw 5/16-18 x 0.625
  • HDW-90027: Socket head cap screw #4-40 x 0.625
  • HDW-90048: Socket button head cap screw #10-32 x 0.75
  • HDW-90056: Socket head cap screw #10-32 x 1
  • HDW-90057: Hex socket head cap screw M5x0.80 x 10
  • HDW-90118: Flat point hex socket set screw #8-32 x 0.125
  • HDW-90131: Type B narrow flat washer #10
  • PN-001: Auto Head - Spindle Base Plate
  • PN-007: Auto Head - Motor Yoke BRKT
  • PN-008: Auto Head - Motor Mount
  • PN-009: Auto Head - Modified Pulley
  • PN-2773: Motor - Servo - Yaskawa - 400W
  • PN-344: Auto Head - Spindle Standoff
  • PN-3827: SMC Air Gripper - Parallel - 16mm Bore X Wide Opening
  • PN-3837: Spindle Belt
  • PN-913: Auto Head - Gripper MTG BRKT
  • PN-953: Auto Chuck Gripper Jaw - Right
  • PN-954: Auto Chuck Gripper Jaw - Left
  • PN-964: Auto Gripper Chuck Key
Machine Serial Number:*0/320

If unknown, enter serial as N/A

* Pricing is listed as $0 due to model-specific variations. We’ll review your serial number, follow up if needed, and email a precise quote

Add to Quote
